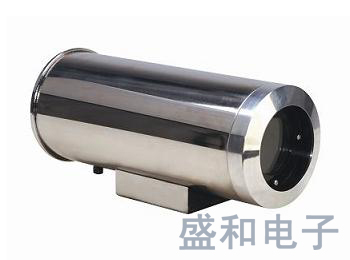

SHL711 Wind Cool Camera Housing


Model:     SHL711

Name:     Wind Cool Camera Housing

IP Level:  IP68





Description:


SHL711 Wind-cooled Camera Housing is made of stainless steel with good corrosion-proof performance. SHL712 wind-cooled camera housing’s end closure is designed in accordance with pinhole lens. Set on the rear cover board, all the lines connects plastics-wrapped tube and pipe to achieve protection. This kind of product has been widely applied to industries of metallurgy、electrical power、glass and building material etc..


? Cooling high-temperature environment ( ≤250℃ ) to guarantee camera’s regular work
? 316L、304 stainless steel optional
? In accordance with IP68 to satisfy the operating needs for extremely adverse environment
? Housing allows for installation of all kinds of CCD cameras. Unit weight 3Kg/4Kg
? To operate in coordination with air pump, hydraulic pump, oily water separator and high-temperature-proof covering


Model

SHL711

Basic Parameter

Manufacturers Standard

Enterprise standard

Configuration Mode

Dual-layer stainless steel

IP

IP68

Cable entries

2 water-proof calbe entries , inner hole Dia.ф10

Air entry

G1/4”



Mechanical

Features

Construction

304316L stainless steel

Sight glass dimensions

ф65 mm

Dimensions (L×W×H)

320×134×151 mm

Inside dimensions

ф100×280 mm

Weight

3 kg



Operational Requirement

Operating environment

Applicable to high-temperaturedust and heated splashing material ( slagliquid iron etc.)

Operating temperature

≤80℃

Relative Humidity

≤80% 40℃

Atmosphere pressure

86 Kpa ~106 Kpa

Dust concentration

≤200 mg / m3 ( take cement dust as standard)

Inlet Air-compression temperature

≤35℃

Flow of air

0.3 L/s ~0.6 L/s

Air-compression pressure

0.1 L/s ~0.6 L/s

Power Supply

Voltage

24V DC/220V AC

Current

2 A /0.5 A

Others

Built-in Power supply module

Optional

Cable requirement

High-temperature-proof cableshield (function: power supply 2×1.0 mm2 signal 2×0.75 mm2 video75Ω
