SQF600 Ex Fix Dome Camera


Product Model:

SQF600

Product name:

Ex Fix Dome Camera

Ex Mark:

ExdCT6 / DIP A20 TA,T6

IP Level:

IP68

Description

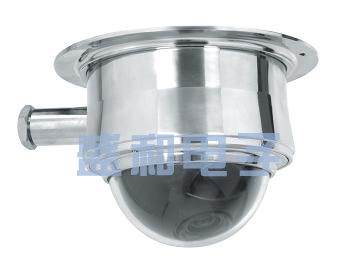

SQF600 Explosion-proof Dome Camera is designed to protect camera against explosive atmosphere relating to gas group IIC (typical gas vapours: hydrogen, acetylene, ethene, coke-oven gas and methyl ether etc.) as well as flammable dust. The stainless steel dome housing with aerospace material could resist 1.5KG impact in compliance with highest protection grade IP68, which is ideal for high security and hazardous environment applications; It integrates color CCD sensor and optional lens Computar 2.8-12mm, which can be manually adjusted to monitor other directions. With smart shape, the camera is easy to install into any indoor / outdoor application.

Technical Data

Model

SQF600

Certification Parameter

Manufacturers Standard

IEC60079, IEC21641, GB3836-2000, GB12476.1-2000

Configuration Mode

Integrated Dome Shape

Explosion-proof Mark

ExdⅡCT6 / DIP A20 TA,T6

IP

IP68

Operating Temperature

-45℃~60℃

Humidity

≤95%

Cable Entries

1×G1/2”Explosion-proof cable entry , Dia. of inner hole Φ14

Mechanical Features

Material

304 /316L(stainless steel)

Weight

2.75 Kg

Camera

CCD Sensor

1/3”SONY CCDHITACHIDSP

TV System

NTSC

PAL

Horizontal Frequency

15.734kHz

15.625kHz

Vertical Frequency

59.94Hz

50.00Hz

Pixel

(H)510×(V)592

(H)500×(V)582

Horizontal Resolution

420 TVL

540 TVL

Mini. Illumination

0.005Lux of F1.2

0.00045Lux of F1.2

0.005Lux of F1.2

0.00045Lux of F1.2

Scan

2:1 Interlace Scan

Sync. System

Internal

Manual Zoom

2.8~12mm

White Balance

Auto / Manual

Iris

Auto Iris; Control:Video Drive/ Electronic Shutter /DC Drive

S/N Ratio

Min. 50 dB / Max.60 dB (AGC shut)

Video Output Level

Combined & Separated image signal output, 1.0 Vp-p (75Ω)

AGC

Max. +18 dB

Electronic Shutter

1/60 (1/50)~1/120000 sec

Power

12V±1V DC, 90mA

Power Supply

Voltage

12V DC / 220V AC

Current

2A/ 250mA
